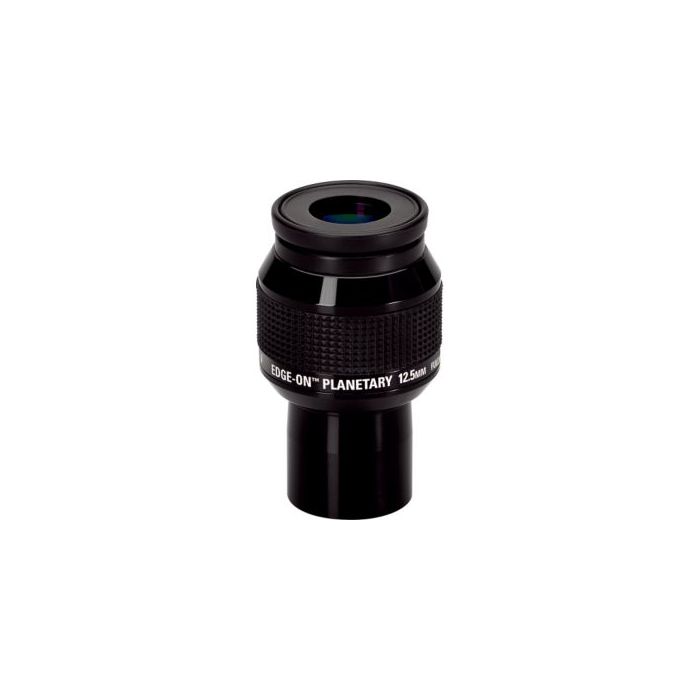

Orion 12.5mm Edge-On Planetary Eyepiece 1.25 Inch
- High-magnification 12.5mm focal length 1.25" Edge-On Planetary eyepiece designed for exceptional views of the Moon and planets as well as compact celestial objects
- Flat field design ensures sharp focus out to the edge of their wide 55deg apparent field of view
- Barrel distortion and field curvature commonly seen in standard eyepiece designs are delightfully absent in the 12.5mm Edge-On Planetary
- Telescope eyepiece features a long 20mm eye relief for comfortable viewing even with eyeglasses on
- This amazingly affordable Orion Edge-On eyepiece won't have you on edge financially!
12.5mm Orion Edge-On Planetary eyepieces bring flat-field performance to solar system viewing in the form of three high-magnification focal lengths. Each employs a sophisticated 7-element lens design reminiscent of exotic, high-priced oculars to provide a sharp focus all the way to the edge of their wide 55-deg apparent field of view. The barrel distortion and field curvature aberrations common in standard telescope eyepiece designs are virtually gone. Edge-On Planetary eyepieces let you push the power, whether you're canvassing the lunar terminator or studying the Jovian cloud belts. The 7-element optics are fully multi-coated for high light transmission, and each eyepiece has 20mm eye relief for viewing comfort. Other nice touches: blackened lens edges, pop-down rubber eyeguards, and barrels threaded for 1.25" filters. Barrel diameter: 1.25".
| Specifications | Design
Proprietary
Eyepiece focal length
12.5mm
Barrel size
1.25"
Apparent field of view
55.0°
Eye relief
20.0mm
Coatings
Fully multi-coated
Number of elements
7
Filter threads
Yes
Parfocal
Yes
Field stop diameter
15.6mm
Barrel security recess
No
Blackened lens edges
Yes
Rubber eyeguards
Yes
Body material
Aluminum
Case
No
Weight (oz.)
6
Dimensions
3 in. x 1.7 in.
Warranty
One year |
|---|
