POS-126518
In stock

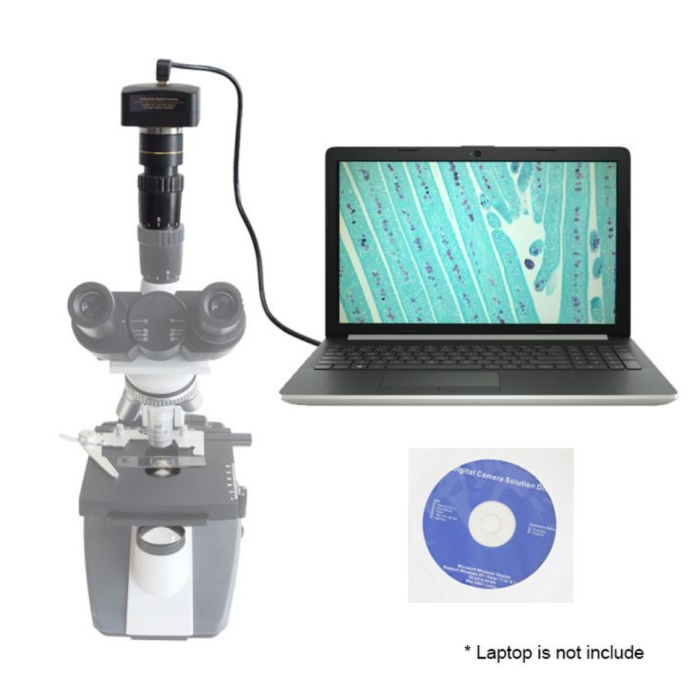

saxon 3 Megapixel Digital Microscope Camera
AUD $449.00
Step into the world of microscope photography with the saxon 3 Megapixel Digital Microscope Camera.
This camera fits on microscopes of any size thanks to the included 30mm and 30.5mm adapter tubes.
You can take pictures or even record videos of specimens and document your observations.
Specifications:
- Sensor size: 2048x1536 (Approx 3.2 Megapixels)
- CMOS sensor size: 1/2" (6.5mm x 4.92mm)
- Frames per second: 43fps@680x510, 22fps@1024x768, 8fps@2048x1536
- Responsivity: 1.0V/lux-sec (550nm)
- Dynamic range: 61dB
- SN Ratio: 43dB
NOTE: This camera can also be used for limited astro photography up to 2 second exposures. You will need the Sirius 1.25in to C/CS mount for this (Item: 125426)
Hardware Specifications
| Image Pickup Device | Aptina Mt9T001 CMOS (Colour) |
| Scan Mode | Progressive |
| Max. Resolution | 2048 x 1536 (Approx. 3,200,000 pixels) |
| Sensor Size | 1/2" (6.55mm(H)x4.92mm(V), Diagonal 8.19mm) |
| Pixel Size | 3.2μm x 3.2μm |
| G Sensitivity | 1.0V/lux-sec (550nm) |
| Dynamic Range | 61dB |
| A/D Converter | 10-bit, 8-bit RGB to PC |
| SN Ratio | 43dB |
| Spectral Range | 380-560nm (with IR-filter) |
| Video Format and Frame Rate | 8fps@2048x1536, 22fps@1024x768, 43fps@680x510 |
| Binning | 1x1, 2x2, 3x3 |
| Exposure | 0.128ms~2000ms, ROI Auto & Manual |
| White Balance | ROI White Balance/Manual Temp-Tint Adjustment |
| Colour Rendering Technique | Ultra Fine Colour Engine |
| Peak Quantum Efficiency | 35% |
| Radout Noise | N/A |
| Extinction Ratio | N/A |
| Smear | N/A |
| Capture/Control API | Native C/C++ SDK, DirectShow, Twain |
| Recording System | Still Picture, Movie |
Optimum Operating Range
| Operating Temperature | -10°C ~ 50°C |
| Storage Temperature | -20°C ~ 60°C |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 5V over PC USB Port |
Software Requirements
| Operating System |
Microsoft Windows 7/8/10 |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or higher Memory: 2GB or more USB Port: USB2.0 High-speed port Display: 17" or larger CD drive for installation |
